Why PET Thermoforming Sheet Extrusion Machines Dominate Food Packaging

I remember the first time a major food brand asked me whether PET could replace PS for their deli container program. It was 1997, and the industry was in the early stages of questioning PVC and PS for food-contact applications. The answer wasn't straightforward—PET was harder to process, the equipment was more expensive, and the supply chain for food-grade PET resin was still maturing. Fast forward to today, and the PET thermoforming sheet extrusion machine has become the backbone of the global food packaging industry. The shift didn't happen overnight, but the reasons behind it are compelling, technical, and worth understanding for anyone involved in packaging material selection. For a broader perspective on plastic sheet extrusion machine technology, see our definitive guide.

The Clarity and Aesthetics Advantage

Walk into any supermarket in the world and look at the produce, deli, and bakery sections. The transparent containers holding fresh salads, sliced meats, and pastries are almost exclusively PET. There's a reason for this dominance, and it starts with the material's optical properties.

Amorphous PET sheet produced on a well-calibrated extrusion line achieves light transmission above 87%—comparable to glass in visual clarity. But unlike glass, PET is lightweight, shatterproof, and inexpensive to form into complex shapes. When the sheet is extruded with a high-gloss calender roll finish and fed into a thermoforming machine, the resulting containers have a premium appearance that PS simply cannot match.

I've worked on lines producing PET sheet for high-end confectionery trays where the client required gloss readings above 140 GU (gloss units). Achieving that consistently requires not just the right material but also precise control over roll temperature, nip pressure, and line speed on the extruder. A PET sheet extrusion machine with automated gauge control and oil-circulated calender rolls makes the difference between a product that commands shelf presence and one that doesn't.

Food Safety and Regulatory Compliance

The food packaging industry has become increasingly demanding about material safety, and PET has earned its position as the material of choice through decades of proven performance. PET is FDA-compliant for direct food contact (21 CFR 177.1630), EU Regulation 10/2011 compliant, and approved by virtually every national food safety authority worldwide.

Unlike PVC, PET contains no plasticizers that could migrate into food. Unlike PS, PET does not release styrene monomers at elevated temperatures—a concern that has driven regulatory scrutiny of PS food-contact applications in multiple markets. For food packaging converters, using PET eliminates entire categories of regulatory risk.

From a processing standpoint, PET's food-contact compliance demands careful attention to acetaldehyde (AA) generation during extrusion. AA is a natural byproduct of PET thermal degradation, and at elevated levels it can impart an off-taste to packaged food and beverages. A well-designed PET sheet extrusion machine controls AA through optimized screw design (minimizing residence time), precise temperature management (avoiding hot spots), and proper resin drying (preventing hydrolysis which accelerates degradation). Target AA levels for food-contact sheet are typically below 2-4 ppm—a specification that separates experienced PET line manufacturers from general-purpose equipment suppliers.

Thermoforming Performance

The entire value chain for thermoformed food packaging depends on how well the sheet forms in downstream equipment. PET has become the dominant material partly because it forms exceptionally well in both positive and negative thermoforming processes.

Amorphous PET sheet has a forming temperature window between roughly 90°C and 120°C, depending on the specific grade and IV level. Within this range, the material exhibits excellent draw-down characteristics—it stretches uniformly without excessive thinning in deep-draw applications, and it holds fine detail for textured containers, embossed logos, and ribbed designs.

For high-speed thermoforming operations running 20-40 cycles per minute, sheet consistency is paramount. Gauge variation translates directly to forming variation: thick sections don't form completely, thin sections rupture. A thermoforming sheet extrusion machine that holds gauge to within ±3% across the full web width ensures uniform wall thickness in the formed container, which is essential for both structural integrity and customer perception.

Recyclability and Sustainability

The sustainability argument for PET in food packaging has become overwhelming in recent years. PET is the most widely recycled plastic in the world, with established collection, sorting, and recycling infrastructure in virtually every developed market. A PET thermoformed container can be recycled back into sheet, fiber, or new packaging—a closed loop that PS and PVC simply cannot match.

For packaging converters running recycled content, a recycled PET sheet extrusion machine enables the use of rPET at levels from 25% to 100% without sacrificing optical or mechanical properties. The availability of food-grade rPET (produced through either mechanical recycling with super-clean processing or chemical/depolymerization routes) means that sustainability commitments and food safety requirements can coexist.

I've seen clients transition from 100% virgin PET to 70/30 virgin/rPET blends with minimal process adjustment. The key requirements are enhanced filtration (to remove contaminants in recycled material), extended drying times (rPET reabsorbs moisture more readily than virgin), and careful IV monitoring to ensure the final sheet meets mechanical strength specifications.

Mechanical Properties for Food Packaging

Food containers must protect their contents through handling, transportation, and retail display. PET delivers an impressive combination of stiffness, impact resistance, and gas barrier properties that make it uniquely suited to food packaging applications.

PET's tensile modulus of 2,700-3,100 MPa gives formed containers the rigidity needed to stack without collapsing—critical for distribution efficiency. Its impact strength, particularly at refrigerated temperatures, far exceeds that of PS, which becomes brittle in cold environments. This is why PET dominates in fresh produce and deli applications where containers are stored and displayed at 0-5°C.

PET also provides a moderate oxygen barrier (approximately 50-100 cc/m²/24h at 23°C for 0.3 mm sheet), which extends the shelf life of oxygen-sensitive foods compared to PS. For applications requiring enhanced barrier performance, a multilayer PET sheet extrusion machine can incorporate EVOH or PVDC barrier layers, achieving oxygen transmission rates below 1 cc/m²/24h—enough for fresh meat and cheese packaging with weeks of extended shelf life.

Cost Economics: Why the Numbers Work

PET resin pricing has become increasingly competitive relative to PS over the past decade, driven by global capacity expansion and the growing availability of rPET at favorable prices. While PET resin is still typically 10-20% more expensive per kilogram than GPPS, the total economics favor PET for most food packaging applications.

The reasons are threefold. First, PET containers can be downgauged—they achieve equivalent stiffness at thinner gauges than PS, reducing material consumption per unit. A 0.35 mm PET container often matches the performance of a 0.45 mm PS container. Second, PET's higher recycled content acceptance allows converters to incorporate lower-cost rPET. Third, the market premium that brands and retailers place on PET packaging (driven by consumer sustainability preferences) means converters can command better margins on PET products.

From an equipment investment perspective, the higher capital cost of a food-packaging-sheet-extrusion-machine for PET is recovered through these operational economics. Most of my clients see payback within 12-18 months when transitioning from PS to PET production.

Application Breadth

The range of food packaging produced from PET thermoforming sheet is remarkable. Here are the major application categories I've encountered across my career:

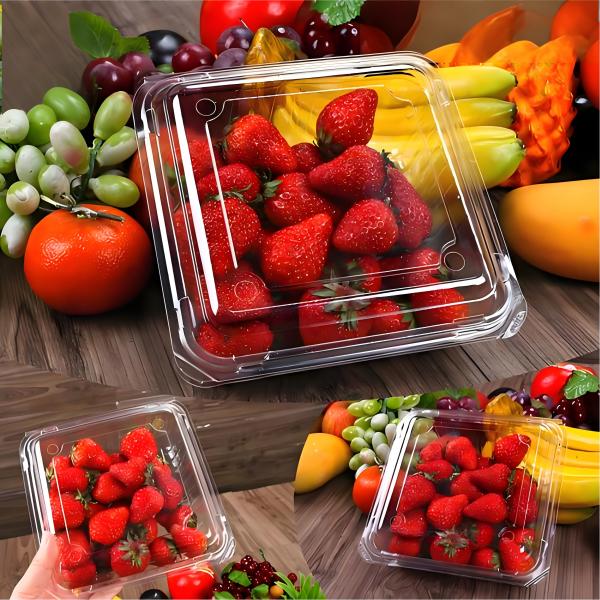

• Fresh produce containers: Clamshells and trays for berries, grapes, tomatoes, and salads

• Deli and prepared foods: Lidded containers for sliced meats, prepared meals, and party platters

• Bakery: Cookie trays, cake domes, and pastry containers

• Dairy: Yogurt cups, pudding cups, and cheese packaging

• Beverage cups: Clear drinking cups for cold beverages and smoothies

• Disposable food containers: Takeout containers, bento boxes, and compartmentalized meal trays

Each application has slightly different sheet requirements—thickness, clarity level, stiffness, and forming depth—but the underlying rigid PVC sheet extrusion machine platform remains the same, with process adjustments managed through the control system's recipe functions.

The Future: PET's Position Is Strengthening

If anything, PET's dominance in food packaging thermoforming is accelerating. Regulatory pressure on single-use PS is intensifying in the EU, parts of North America, and several Asia-Pacific markets. Consumer demand for recyclable packaging is growing. And the rPET supply chain is maturing rapidly, with new chemical recycling capacity coming online that will produce food-grade recycled PET at industrial scale.

For packaging converters who haven't yet invested in PET thermoforming sheet production capability, the market signals are clear. The disposable food container sheet extrusion line segment is growing at 5-7% annually in most markets, and the vast majority of that growth is PET-based. The window for establishing a competitive position in this space is open now—but it won't stay open indefinitely.

Frequently Asked Questions

Why is PET preferred over PS for food packaging? PET offers superior optical clarity, better impact resistance (especially at cold temperatures), no plasticizer migration concerns, no styrene emission issues, and far better recyclability. While PS is cheaper per kilogram, PET's performance advantages and sustainability credentials have made it the material of choice for most food-contact thermoformed packaging.

What thickness range is typical for PET thermoforming sheet? Food packaging thermoforming sheet typically ranges from 0.15 mm to 1.2 mm depending on the application. Drinking cups use 0.15-0.35 mm, produce clamshells 0.25-0.45 mm, deli containers 0.35-0.60 mm, and industrial trays 0.60-1.2 mm. The sheet thickness directly affects forming depth, container stiffness, and material cost per unit.

Can PET thermoforming sheet be made from 100% recycled material? Yes, though it requires careful material preparation and process control. Food-grade rPET from chemical recycling (depolymerization and repolymerization) can be used at 100% with confidence. Mechanically recycled rPET at high levels needs enhanced filtration, extended drying, and IV monitoring to maintain sheet quality. Many commercial lines successfully run 50-100% rPET.

Does PET sheet work for both hot and cold food packaging? PET sheet works excellently for cold and room-temperature food packaging. For hot-fill applications above 70°C, amorphous PET may distort—these applications typically use heat-set PET (crystallized PET with higher dimensional stability) or CPET (crystallized PET) sheet produced on specialized lines with annealing ovens. Standard amorphous PET is ideal for refrigerated and ambient food packaging.

What's the difference between PET and rPET thermoforming sheet? rPET (recycled PET) has slightly different thermal and rheological properties compared to virgin PET due to chain scarring from prior processing. IV levels are typically lower, acetaldehyde potential is higher, and contamination risk increases. However, for most food packaging thermoforming applications, properly processed rPET sheet performs equivalently to virgin PET sheet. The key is having the right PET sheet extrusion machine configuration with adequate drying, filtration, and process control.
