PE PVC TPO Extra-width Geomembrane Waterproof Sheet Extrusion Machine Production Line

Geomembrane Waterproof Sheet Extrusion Machine Production Line

PE PVC TPO Extra-width Geomembrane/waterproof Sheet Extrusion Line

PE PVC TPO extra-width geomembrane waterproof sheet extrusion line is a specialized industrial production system used to manufacture geomembranes, which are impermeable sheets designed to prevent the passage of liquids or gases. These geomembranes are widely used in various applications, including civil engineering, environmental protection, and construction projects, to provide waterproofing and containment solutions.

Port:
Shanghai, China
Terms of Payment:
LC, T/T
International Commercial Terms(Incoterms):
FOB, CFR, CIF, EXW
Certification:
CE, ISO, UL, QS, GMP
Warranty:
1 Year
Average Lead Time:
Peak season lead time: 3-6 months, Off season lead time: 1-3 months


Availability:



Inquire

Product Description

Geomembrane Waterproof Sheet Extrusion Machine Production Line1

JWELL PE PVC TPO extra-width geomembrane waterproof sheet extrusion line is a specialized industrial production system used to manufacture geomembranes, which are impermeable sheets designed to prevent the passage of liquids or gases. These geomembranes are widely used in various applications, including civil engineering, environmental protection, and construction projects, to provide waterproofing and containment solutions. As the leading manufacturer of plastic extrusion and recycling lines in China, with over 40 years of experience, JWELL provides customers with professional and complete solutions in the field of plastic extrusion.

Extrusion Machine Information

Machine Specifications

Model	JW150+JW150-4000mm	JW150+JW150/JW180+JW180-8500mm
Products width(mm)	4000mm	8500mm
Product Thickness(mm)	0.5-3mm	0.8-3mm
Extruder model	JW150+JW150	JW150+JW150/JW180+JW180
Max Capacity (kg/h)	1200-1500kg/h	1500-2500kg/h

What is PE PVC TPO Extra-width Geomembrane Waterproof Sheet?

PE PVC TPO extra-width geomembrane waterproof sheet is a flexible, impermeable membrane made from synthetic materials such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), polyvinyl chloride (PVC), Thermoplastic polyolefin(TPO) or other polymer-based compounds. It is engineered to provide a high level of resistance to water, chemicals, and gases.

Environmental and Waste Management:

Landfill Liners: Geomembranes are used to line landfills to prevent the leakage of hazardous waste and leachate into the soil and groundwater.

Wastewater Treatment: They are used in ponds and tanks to contain wastewater and prevent contamination.

Civil Engineering:

Canal and Reservoir Lining: Geomembranes are used to line canals and reservoirs to prevent water seepage and improve water retention.

Tunnel and Bridge Waterproofing: Waterproof sheets are used to protect tunnels and bridges from water ingress, ensuring structural integrity.

Construction:

Roofing: Waterproof sheets are used in roofing systems to prevent water penetration and protect the underlying structure.

Foundation Waterproofing: They are used to protect building foundations from moisture and groundwater.

Agriculture:

Irrigation Systems: Geomembranes are used in irrigation ponds and channels to conserve water and prevent soil erosion.

Greenhouses: Waterproof sheets can be used to create impermeable barriers in greenhouses to manage water and soil conditions.

Industrial Applications:

Storage Tanks: Geomembranes are used to line storage tanks to prevent the leakage of chemicals and other substances.

Industrial Flooring: Waterproof sheets are used to create impermeable floors in industrial facilities to prevent contamination and protect against spills.

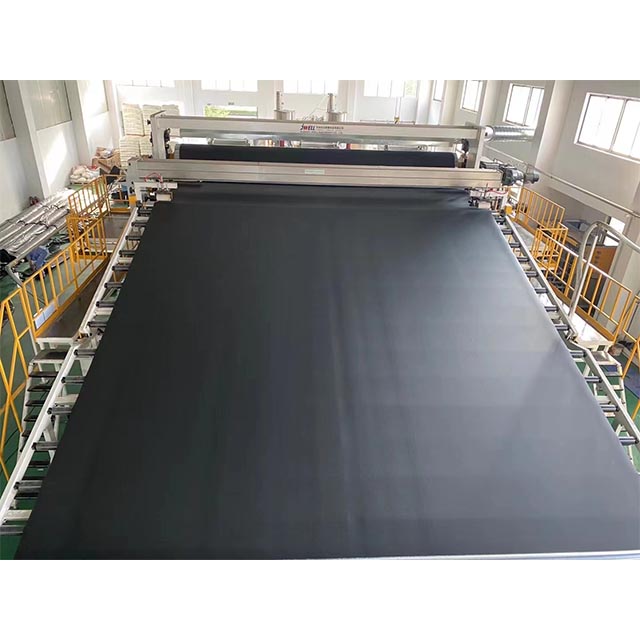

Geomembrane Waterproof Sheet Extrusion Machine Production Line2

Full Production Processes of PE PVC TPO Extra-width Geomembrane Waterproof Sheet

PE waterproof geomembrane sheet extrusion process

PDF Catalogue

JWELL Extra-width Geomembrane, Waterproof Sheet Extrusion Line.pdf

Who We Are?

Jwell Machinery is a leading Chinese manufacturer specializing in the production of extrusion machinery, particularly for the plastic processing industry. Founded in 1997, Jwell has become one of the largest and most well-known manufacturers of plastic extrusion equipment in China and is recognized globally for its high-quality products.

What We Are Offering about PE PVC TPO Extra-width Geomembrane Waterproof Sheet?

High-Performance Extrusion Lines

· Single-Screw & Twin-Screw Extruders for stable processing of various materials, including HDPE, LDPE, LLDPE, EVA, PVC, TPO, and PP.

· Specially designed screw and barrel for efficient plasticization and extrusion.

Multi-Layer Co-Extrusion Technology

· Supports single-layer and multi-layer geomembranes for improved mechanical properties.

· Customization of layers with different materials to enhance strength, flexibility, and chemical resistance.

Precision Thickness & Surface Control

· Automatic thickness control system (T-die technology) for precise sheet uniformity.

· Smooth or textured surface options for better adhesion and performance in different applications.

Advanced Calendering & Cooling System

· Three-roller or five-roller calendering system for enhanced sheet strength and smoothness.

· High-efficiency cooling system to ensure dimensional stability.

High Automation & Intelligent Control

· PLC automatic control system with real-time monitoring of temperature, pressure, and speed.

· Automatic cutting and winding systems for continuous, efficient production.

Energy-Saving & Eco-Friendly Solutions

· Optimized design for low energy consumption while maintaining high output.

· Supports recycled materials for sustainable production.

FAQ

Q1: What about the payment way?

A1:By TT, L/C at sight. 30% down payment should bepaid after contract is valid, 70% balance should be paid before shipment.
Q2:Installation and stuff training available from you?

A2:Yes, we have rich engineers around the world which can send to your factoryand train your workers. Also we can online guide your members.
Q3: How long is the guarantee?

A3:We offer you high quality machines with 12 months guarantee and reply you assoon as possible within 6 hours.
Q4:lf the machine some parts is broken one day, how can we gethelp from you?

A4:We will send you spare parts free of charge lf they are in warranty, not includingeasy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5:How does your factory do regarding quality control?

A5:We have passed the lS09001:2000 Quality Management System and CE certificateand we have a special QC department in charge of products' quality. lf you also needother certificates,we also can help to apply.
Q6:What is your packaging?

A6:Our conventional packaging is: After doing the anti-rust treatment, wrap theplastic film around the machine and then fix the machine on the wooden bracket.
Q7:How can we check the machines before delivery?

A7:We can provide online checking when testing the machine on site. We will takeand prepare detailed testing videos for your checking before the delivery. We acceptthird-party testing. Except above points,we will provide detailed testing report.
