PVC Edge Banding Extrusion Line

Edge banding is a critical part of modern manufacturing, adding both durability and a polished look to furniture, doors, and other products. If you're in the business of creating high-quality edge banding, JWELL PVC Edge Banding Extrusion Line is worth your attention.

Place of Origin:
China
Payment Terms:
LC, T/T
Certification:
CE, ISO, UL, QS, GMP
Warranty:
1 Year
Delivery Time:
1-3 months


Availability:



Inquire

Product Description

JWELL PVC Edge Banding Extrusion Line Videos

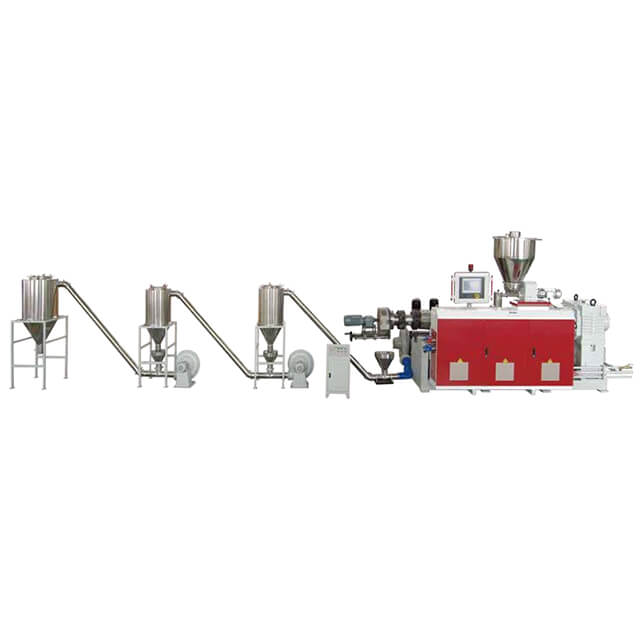

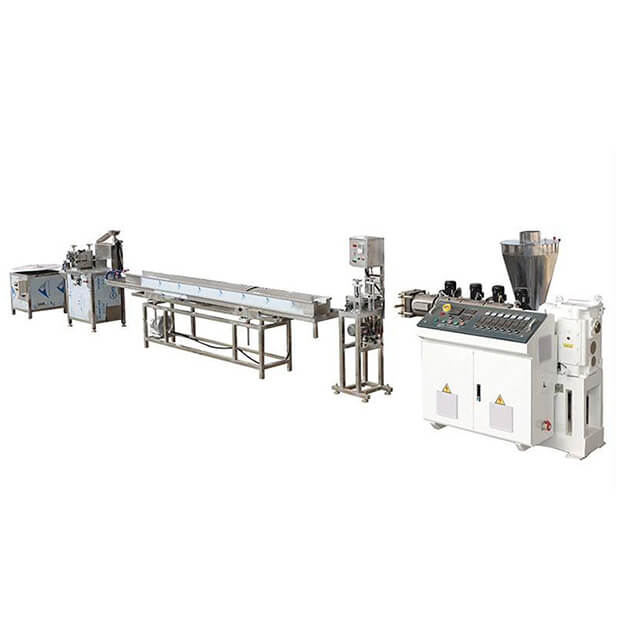

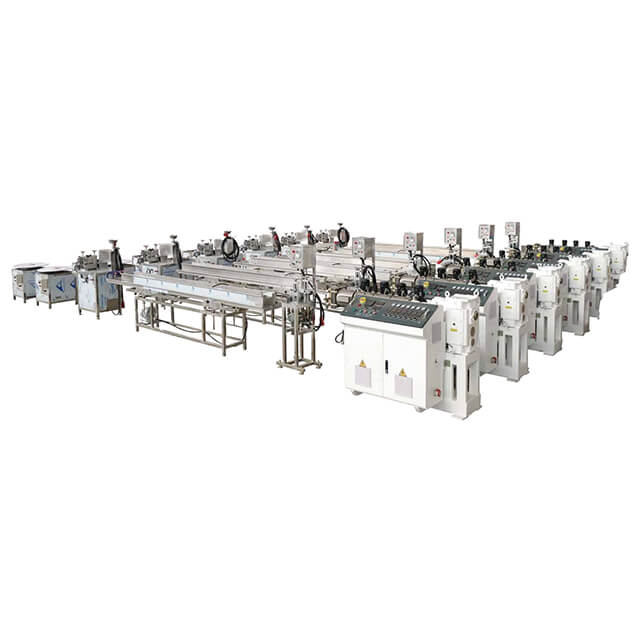

JWELL PVC Edge Banding Extrusion Line is a complete system designed to produce edge banding with high precision. It includes components like extruders, molds, vacuum tanks, haul-off units, gluing rollers, air dryers, cutting devices, and winders. Each part works together to ensure smooth production, from raw material processing to finished edge banding. This machine serves industries such as furniture manufacturing, door production, and decorative profiling, making it a versatile choice for businesses of all sizes.

PVC Edge Banding Extrusion Line Specifications

Model	Driving motor (KW)	Screw rpm	Capacity (kg/h)	Product's size (mm)	Thickness (mm)
JWS45/25	11KW	5-50rpm	15-20	12-35	0.4-1
JWS50/25	15KW	5-50rpm	25-30	12-35	0.4-1
JWS55/25	18.5KW	5-50rpm	30-50	12-45	0.4-2
JWS65/25	22KW	5-50rpm	50-60	12-45	0.4-2

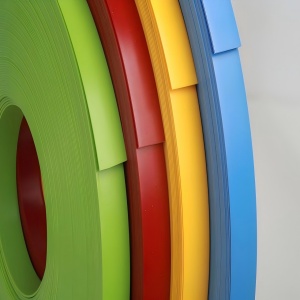

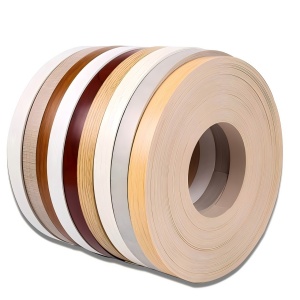

PVC Edge Banding Applications

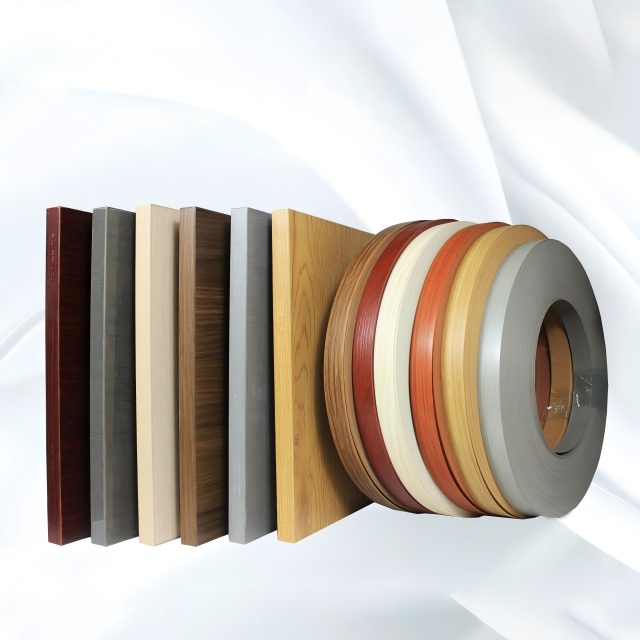

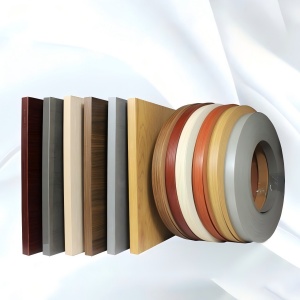

PVC Edge Banding Extrusion Line6(1)

Furniture Production

Edge banding is essential in furniture manufacturing, providing a polished finish to desks, cabinets, and shelves. It also protects edges from damage, extending the lifespan of furniture.

Composite Doors

For wood-plastic composite doors, edge banding prevents moisture and gas from entering, making it ideal for humid environments. This ensures durability and maintains the door's appearance.

Decorative and Packaging Uses

JWELL's edge banding can be used for decorative profiles or packaging thermoforming, offering flexibility for unique designs and functional applications.

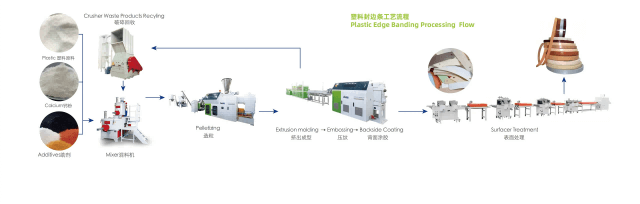

Full Production Processes of PVC Edge Banding

PDF Catalogues

JWELL Profile Extrusion.pdf

FAQ

Q1: What materials can the JWELL extrusion line process?

A1: It processes thermoplastics like PVC, ABS, PP, and PMMA, with support for recycled materials and additives for enhanced properties.
Q2: How does the dual-cavity mold benefit production?

A2: Dual-cavity molds allow the machine to produce two edge bands at once, increasing output without additional time or resources.
Q3: Can the extrusion line produce custom edge banding designs?

A3: Absolutely! It supports various profiles, widths, and thicknesses, allowing you to create edge banding tailored to your specific needs.
