Blow Molding Machine for Chemical Packaging

JWELL's blow molding machine for chemical package delivers one-machine coverage for 10–1000 L hollow containers: 10–25 L stackable drums, 30–200 L wide-mouth and flange drums, 200 L single- or double-"L" ring drums, and 300–1000 L mega IBC tanks—efficiently blow-molding everything from lab reagents to hazardous-goods bulk packaging in a single line.

Place of Origin:
China
Payment Terms:
LC, T/T
Certification:
CE, ISO, UL, QS, GMP
Warranty:
1 Year
Delivery Time:
1-3 months


Availability:



Inquire

Product Description

JWELL Blow Molding Machine for Chemical Packaging Videos

Mainly used for producing chemical packaging drums and containers in a wide range of sizes:

10–25 L stackable drums of various specifications;
30–200 L wide-mouth and flange drums;
200 L single-“L” and double-“L” ring drums;

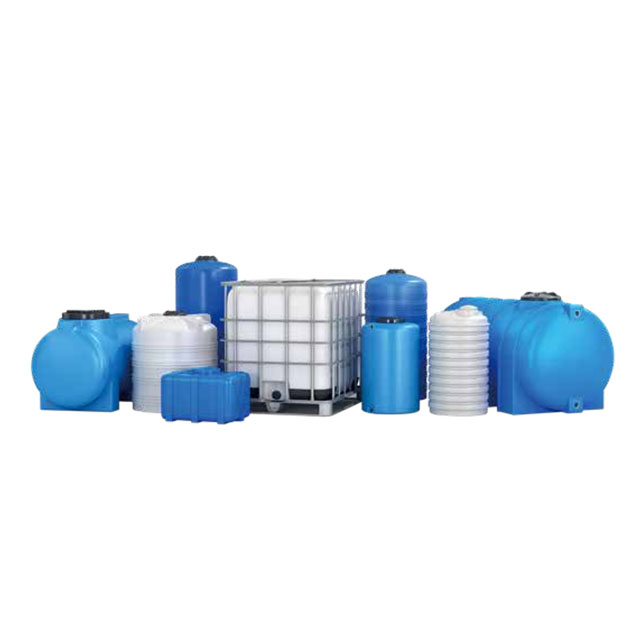

300–1000 L chemical containers.

JWELL Blow Molding Machine for Chemical Packaging Specifications

型号	Model	Unit	BM30DN-C
制品最大容积	Max product volume	L	30
机器空循环	Dry cycle	Pc/h	450*2
机头结构	Die head structure	Continuous type
主螺杆直径	Main screw diameter	mm	100
最大塑化能力	Max capacity (PE)	kg/h	190
绞撩电机功率	Driving motor	Kw	55
油泵电机功率（伺服）	Oil pump motor power(Servo)	Kw	22
锁模力	Clamping force	KN	300
模板开距	Space between platen	mm	340-860
模板尺寸	Platen size W*H	mm	580-600
最大模具尺寸	Max. mold size	mm	500*600
移模行程	Platen moving distance	mm	800
机头加热功率	Heating power of die head	Kw	20
机器外形尺寸	Machine dimension LWH	m	5.64.84.5
机器总重量	Machine weight	T	18
装机总功率	Total power	Kw	125

型号	Model	Unit	BM30	BM50	BM100	BM160	BM230
制品最大容积	Max product volume	L	30	50	100	160	230
机器空循环	Dry cycle	Pc/h	600	350	360	300	280
机头结构	Die head structure	Accumulating type
主螺杆直径	Main screw diameter	mm	80	90	100	100	120
最大塑化能力	Max capacity (PE)	kg/h	120	180	190	240	350
绞撩电机功率	Driving motor	Kw	37	45	55	90	132
油泵电机功率（伺服）	Oil pump motor power(Servo)	Kw	5.2	6.2	12.8	18	24
锁模力	Clamping force	KN	22	30	22	22	37
模板开距	Space between platen	mm	280	400	600	800	900
模板尺寸	Platen size W*H	mm	400-900	450-1200	500-1300	500-1400	800-1800
最大模具尺寸	Max. mold size	mm	740*740	880*880	1020*1000	1120*1200	1320*1600
移模行程	Platen moving distance	mm	550*650	700*850	800*1200	900*1450	1200*1800
机头加热功率	Heating power of die head	Kw	20	28	30	30	36
机器外形尺寸	Machine dimension LWH	m	4.32.23.5	5.62.23.8	5.52.54.0	73.54	8.23.55.5
机器总重量	Machine weight	T	12	13.5	16	20	36
装机总功率	Total power	Kw	95	110	135	172	230

JWELL Blow Molding Machine for Chemical Packaging Features

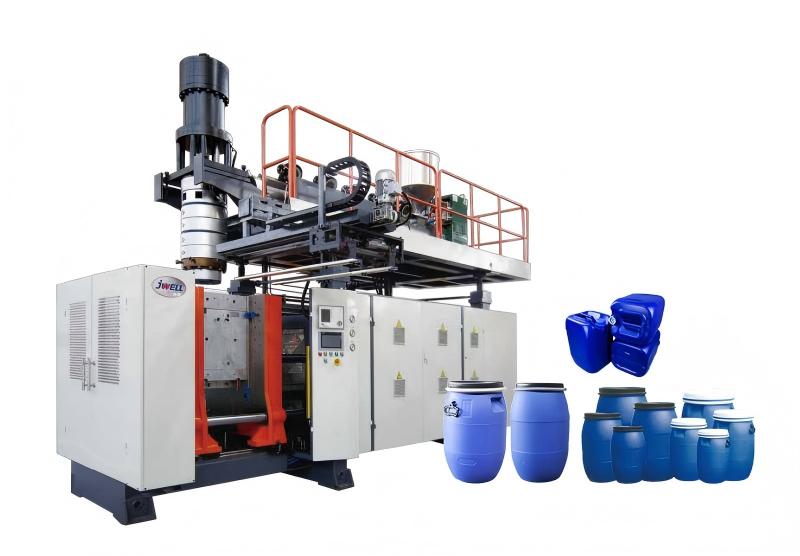

Chemical Packaging Series Blow Molding Machine11

Performance and Advantages:

Adopting a high-yield extrusion system, different screw and die core rod, and channel styles can be designed according to the characteristics of different plastics.
Adopting a continuous die head, the die head is easy to change materials, colors, slag, disassemble and clean.
Computer intelligent control system, easy to operate, set up, and modify production programs.
Optional multi-layer co extrusion.
Optional liquid level line extrusion.
Optional mold moving servo motor control.
Select a multi-mode head extrusion system according to the product specifications and size.
According to the raw material situation, JWV-DB plate type single station hydraulic screen changing system can be optionally selected.
According to customer requirements, automatic trimming, online trimming conveyor, online leakage control, conveying, and packaging of products can be selected to reduce labor costs and improve efficiency.

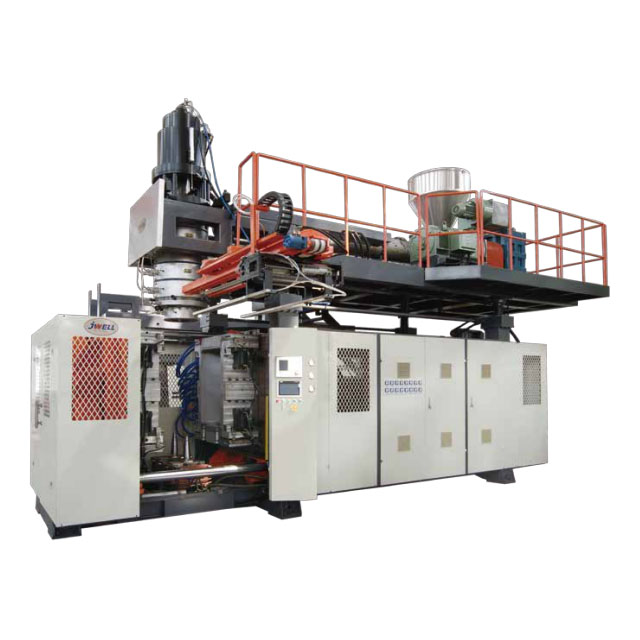

Chemical Packaging Series Blow Molding Machine14

Performance and Advantages:

Adopting a high-yield extrusion system, different screw and die core rod, and channel styles can be designed according to the characteristics of different plastics.
Adopting a accumulating type mold head, the mold head is easy to change materials, colors, slag, dissassemble and clean.
Computer intelligent control system, easy to operate, set up, and modify production programs.
Optional upper parison close unit, product ejection, core pulling and other action components.
According to the raw material situation, JW-DB plate type single station hydraulic screen changing system can be optionally selected.
Optional double-layer co-extrusion system.
Template specifications and sizes can be customized according to the size of the product.

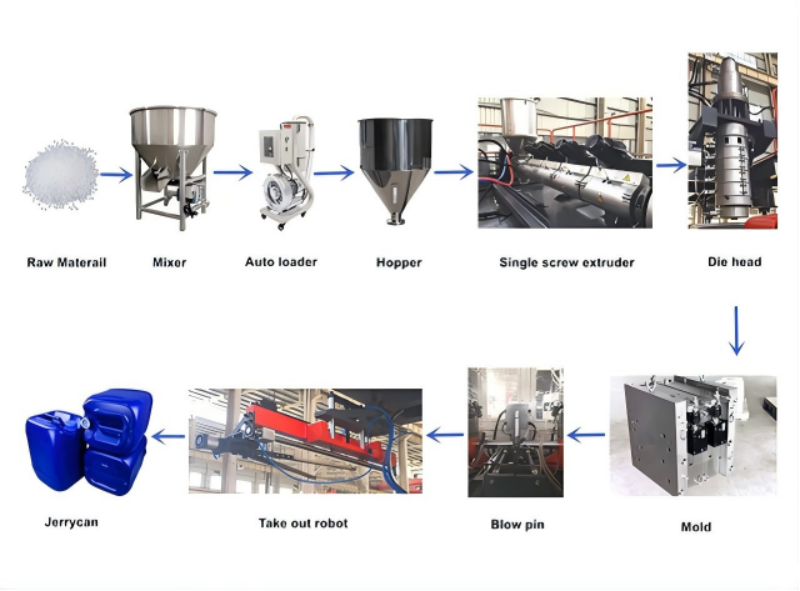

Full Production Processes of Blow Molding

Chemical Packaging Series Blow Molding Machine10

PDF Catalogues

JWELL Blow Molding Machine.pdf

FAQ

Q1: What is the biggest difference between blow molding machines for chemical packaging and standard blow molding machines?

A1: Chemical packaging machines emphasize safety and corrosion resistance: they feature multi-layer co-extrusion barriers, higher clamping force, online leak detection, and compliance with UN standards for hazardous goods. Standard machines generally cannot achieve these requirements.
Q2: What specific benefits does multi-layer co-extrusion bring to chemical containers?

A2: It incorporates barrier layers such as EVOH or PA, which significantly reduce the permeation rate of chemicals, prevent volatilization and leakage, extend storage life, and help meet strict environmental and transportation regulations.
Q3: Can recycled plastic be used to produce chemical packaging?

A3: Yes, absolutely! Many models allow incorporation of 30–50% recycled HDPE. Different formulations are used for inner and outer layers, so it remains environmentally friendly without compromising performance.
