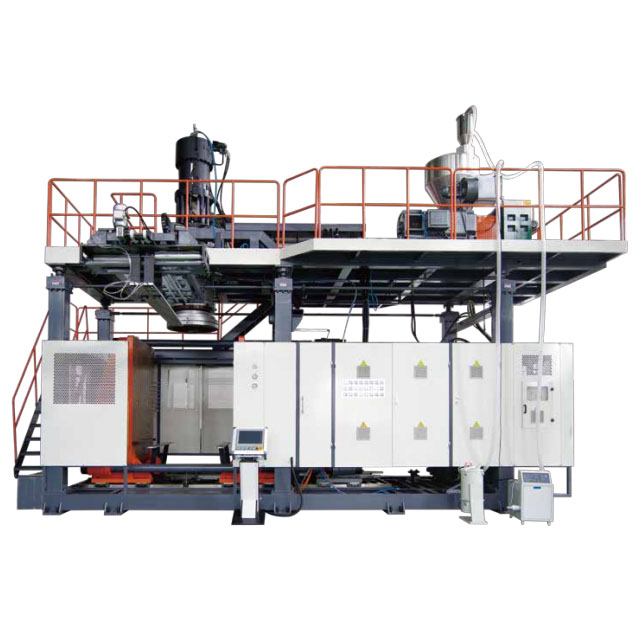

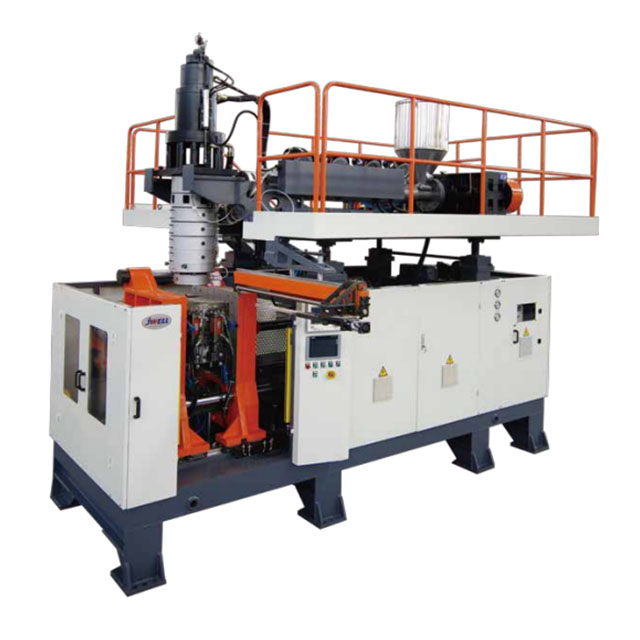

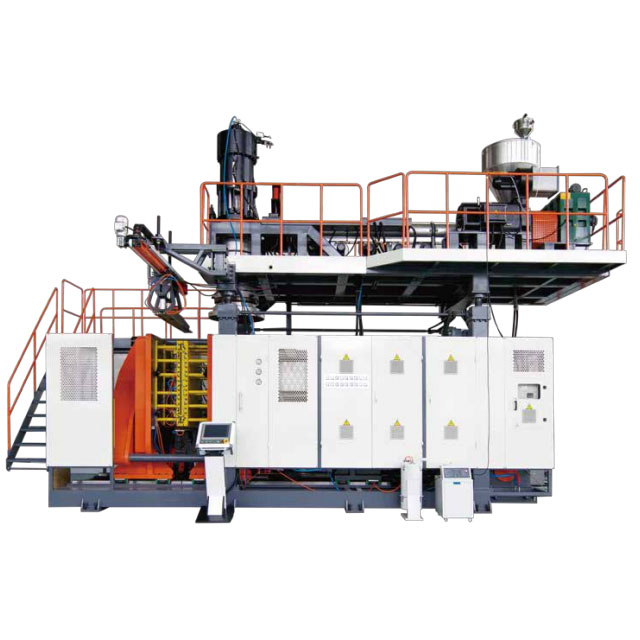

Blow Molding Machine for Transportation Products

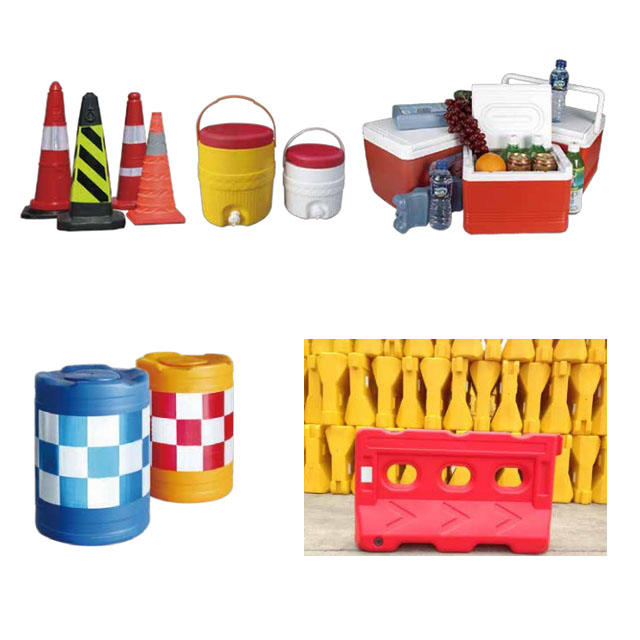

JWELL's Blow Molding Machine for Transportation Products are mainly used in the production of various transportation and logistics products:
1. Traffic cones, roadblocks, crash barriers, and traffic embankments;
2. Insulated containers and boxes for vehicles;

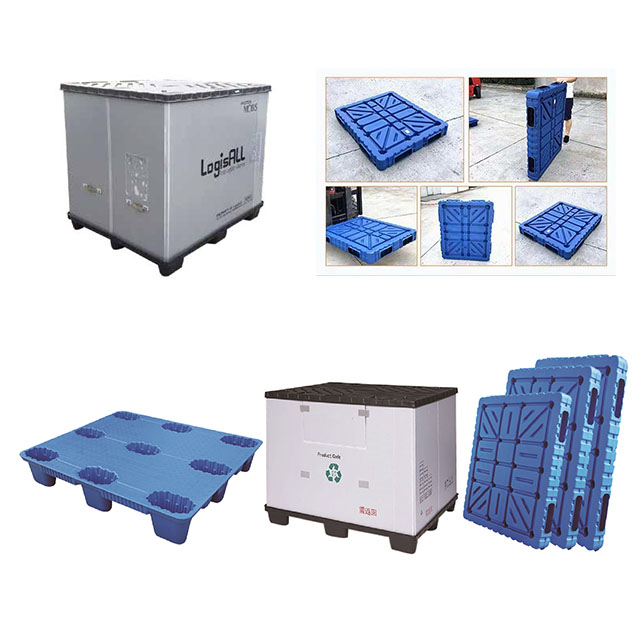

3. Various double-sided and nine-hole pallets and top and bottom covers.

Place of Origin:
China
Payment Terms:
LC, T/T
Certification:
CE, ISO, UL, QS, GMP
Warranty:
1 Year
Delivery Time:
1-3 months


Availability:



Inquire

Product Description

JWELL Blow Molding Machine for Transportation Products Videos

JWELL's Blow Molding Machine for Transportation Products are mainly used in the production of various transportation and logistics products:

1. Traffic cones, roadblocks, crash barriers, and traffic embankments;

2. Insulated containers and boxes for vehicles;

3. Various double-sided and nine-hole pallets and top and bottom covers.

JWELL Blow Molding Machine for Transportation Products Specifications

型号	Model	Unit	BM30	BM50	BM100	BM160	BM230	BM500	BM1000
制品最大容积	Max product volume	L	30	50	100	160	230	500	1000
机器空循环	Dry cycle	Pc/h	600	350	360	300	280	250	155
机头结构	Die head structure	Accumulating type
主螺杆直径	Main screw diameter	mm	80	90	100	100	120	120/135	150/120*2
最大塑化能力	Max capacity (PE)	kg/h	120	180	190	240	350	400	700
绞撩电机功率	Driving motor	Kw	37	45	55	90	132	132/160	185/132*2
油泵电机功率（伺服）	Oil pump motor power(Servo)	Kw	5.2	6.2	12.8	18	24
锁模力	Clamping force	KN	22	30	22	22	37	1300	1800
模板开距	Space between platen	mm	280	400	600	800	900	950-2000	1000-2700
模板尺寸	Platen size W*H	mm	400-900	450-1200	500-1300	500-1400	800-1800	1600*1600	1800*1800
最大模具尺寸	Max. mold size	mm	740*740	880*880	1020*1000	1120*1200	1320*1600	1400*1600	1600*1800
移模行程	Platen moving distance	mm	550*650	700*850	800*1200	900*1450	1200*1800
机头加热功率	Heating power of die head	Kw	20	28	30	30	36	50	65
机器外形尺寸	Machine dimension LWH	m	4.32.23.5	5.62.23.8	5.52.54.0	73.54	8.23.55.5	10.48.26.5	14128.5
机器总重量	Machine weight	T	12	13.5	16	20	36	45	70
装机总功率	Total power	Kw	95	110	135	172	230	265/325	460

JWELL Blow Molding Machine for Transportation Products Features

Transportation Series Blow Molding Machine11

Performance and Advantages:

1. Suitable for producing various specifications of traffic cones, insulated logistics containers, crash barriers, traffic dividers, pallets, etc.;

2. Optional actuating components such as bottom sealing, product ejection, and core pulling;

3. Employs a high-output extrusion system with a storage-type die head;

4. Optional hydraulic servo control system;

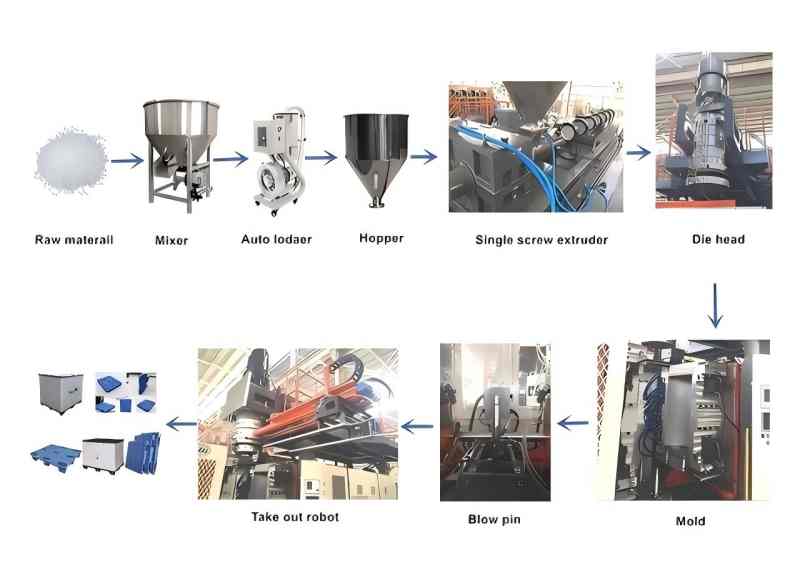

Full Production Processes of Blow Molding

Transportation Series Blow Molding Machine10

PDF Catalogues

JWELL Blow Molding Machine.pdf

FAQ

Q1: What makes blow molding machines ideal for automotive fuel tanks?

A1: 1.Their multi-layer co-extrusion features create barriers against fuel permeation, ensuring compliance with emission standards while keeping tanks lightweight and durable.
Q2: How does automation in blow molding benefit transportation manufacturing?

A2: 2.It speeds up production with robotic handling and quick mold changes, reducing downtime and ensuring consistent quality for high-volume parts like air ducts.
Q3: What precision features do blow molding machines offer for complex geometries?

A3: Servo controls and advanced molds allow intricate shapes like curved ducts with integrated fittings, fitting perfectly in tight vehicle spaces.
