Full Electric Blow Molding Machine-EBM

JWELL's full electric blow molding machine delivers a one-sentence advantage list: oil-free servo drives cut energy 50-60 % and wipe leaks and noise for food/pharma/cosmetic clean rooms; real-time fieldbus collects every machine datum while the 5th-gen U-clamp and multi-point parison curve shorten cycles and wall-thickness tolerance; a high-output, low-shear extruder plus fully automated take-out erase labor and management costs—green, fast, precise and profitable in a single package.

Place of Origin:
China
Payment Terms:
LC, T/T
Certification:
CE, ISO, UL, QS, GMP
Warranty:
1 Year
Delivery Time:
1-3 months


Availability:



Inquire

Product Description

JWELL Full Electric Blow Molding Machine-EBM Videos

JWELL's full electric blow molding machine delivers a one-sentence advantage list: oil-free servo drives cut energy 50-60 % and wipe leaks and noise for food/pharma/cosmetic clean rooms; real-time fieldbus collects every machine datum while the 5th-gen U-clamp and multi-point parison curve shorten cycles and wall-thickness tolerance; a high-output, low-shear extruder plus fully automated take-out erase labor and management costs—green, fast, precise and profitable in a single package.

JWELL Full Electric Blow Molding Machine-EBM Specifications

名称	Model	Unit	JSZ-EBM420D	JSZ-EBM520D	JSZ-EBM650D	JSZ-EBM850D	JSZ-EBM1100D
主螺杆直径	Main screw diameter	mm	65	80	75/90	90/100	100
螺杆长径比	Screw L/D		25/1	25/1	30/1--25/1	30/1--25/1	28/1
挤出量（PE）	Max capacity(PE)	kg/h	70-90	100-110	120-140	150-170	210-230
模板尺寸	Platen size W*H	mm	330*286	420*390	600*400	760*400	1050*400
模具厚度	Mould thickness	mm	2*70	2*90	2*130mm	2*160	2*200
开模行程	Clamp stroke(max.mm)	mm	180	250	320	340	400
移模行程	Plate moving distance	mm	420	520	650	850	1100
锁模力	Clamping force	KN	50	80	180	240	500
空循环	Dry cycle	second	2.9	3.2	4	4.8	6

JWELL Full Electric Blow Molding Machine-EBM Features

Full Electric Blow Molding Machine-EBM11

Performance and Advantages:

Full electric system, energy saving and environmental protection,50%o~60% energy saving comparing to hydraulic system.

>>Servo motor drive, high movement accuracy, fast response, stable start and stop without impact.

>>Using fieldbus control, the whole machine is integrated into the system, which can monitor the running data of the host and auxiliary machine in real time, and realize the collection and data management.

>>Multi-point dynamic adjustment curve of wall thickness, automatic data fitting, smooth transition of type embryo.

>>The extruder adopts high efficiency screw, high output, low energy consumption.

>>Using Jwell fifth generation U type clamping structure, clamping force uniform and stable.

>>Short molding cycle and high cooling performance

>>Automatic production, effectively reduce personnel costs and management costs.

>>No leakage, low noise equipment, suitable for food, medicine, cosmetics and other products with high requirements for cleanliness.

>>Mold moving system simple maintenance, low cost, can achieve large torque control.

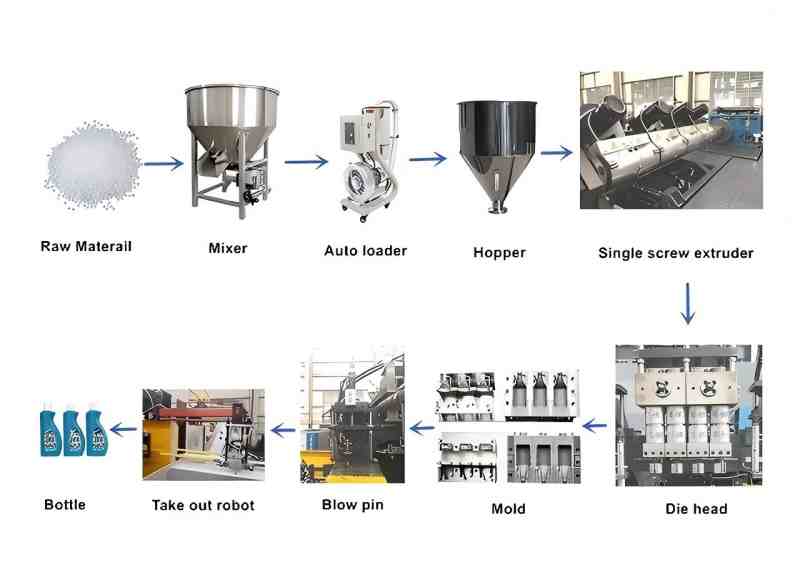

Full Production Processes of Blow Molding

Full Electric Blow Molding Machine-EBM10

PDF Catalogues

JWELL Blow Molding Machine.pdf

FAQ

Q1: What makes a blow molding machine "full electric"?

A1: It uses electric servo motors for all functions—no hydraulics or pneumatics involved. This leads to better control and efficiency.
Q2: How much energy can I save with a full electric machine?

A2: Most users report 50-60% savings compared to hydraulic models, depending on usage.
Q3: Are full electric machines suitable for cleanroom production?

A3: Absolutely! The oil-free design makes them perfect for food, pharma, and cosmetics.
