Product Description

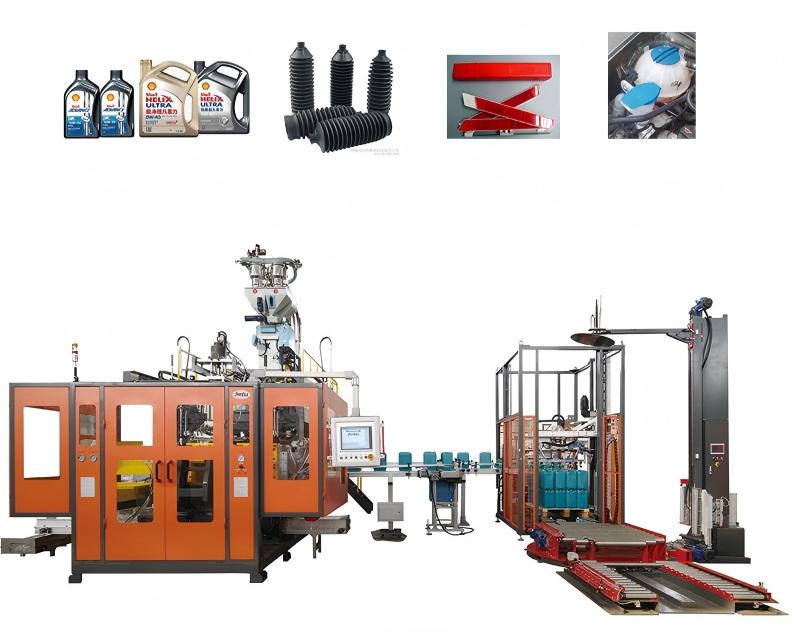

Mainly used in the production of various automotive supplies and components:

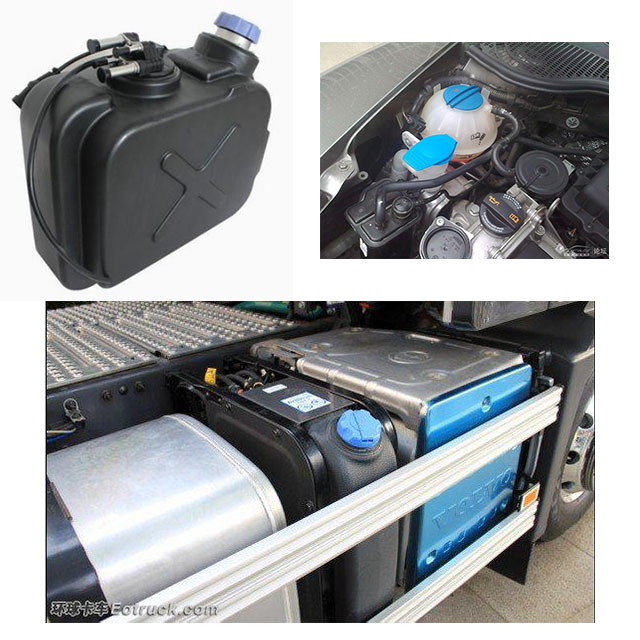

Specialized automotive tanks of non-standard shapes, such as coolant reservoirs, windshield-washer containers, and bus seats, primarily made from HDPE.
Automotive air ducts and ventilation hoses, mainly HDPE.
3D-formed intake pipes, fuel filler necks, etc., produced from HDPE, TPEE, nylon + glass fiber, and other materials.
Deflectors, bumpers, off-road running boards/roof racks, etc., molded in HDPE, ABS, PP, and similar grades.
Dust boots and bellows, typically molded from TPV/TPE.

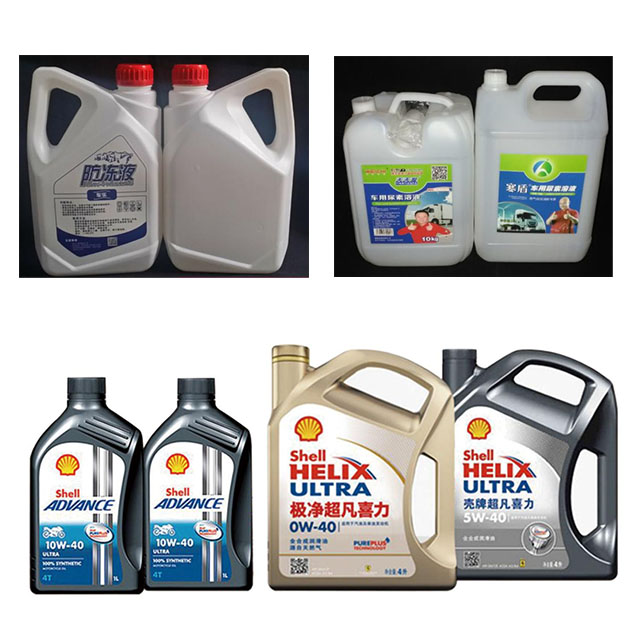

Lubricant bottles, truck urea tanks, engine-oil containers, on-board toolboxes, warning-triangle cases, and similar items, predominantly HDPE.
型号 | Model | Unit | BM05D | BM12D | BM20D |
制品最大容积 | Max product volume | L | 5 | 12 | 20 |
机器空循环 | Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
机头结构 | Die head structure | Continuous type | |||
主螺杆直径 | Main screw diameter | mm | 75 | 90 | 90 |
最大塑化能力 | Max capacity (PE) | kg/h | 90 | 160 | 160 |
绞撩电机功率 | Driving motor | Kw | 30 | 45 | 45 |
油泵电机功率（伺服） | Oil pump motor power(Servo) | Kw | 15 | 18.5 | 18.5 |
锁模力 | Clamping force | KN | 70 | 120 | 160 |
模板开距 | Space between platen | mm | 150-510 | 240-640 | 280-680 |
模板尺寸 | Platen size W*H | mm | 420*390 | 520*490 | 500*520 |
最大模具尺寸 | Max. mold size | mm | 420*400 | 520*490 | 560*520 |
移模行程 | Platen moving distance | mm | 450/520 | 600/650 | 650 |
机头加热功率 | Heating power of die head | Kw | 7.5 | 10 | 12.5 |
机器外形尺寸 | Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
机器总重量 | Machine weight | T | 8.5 | 12 | 14 |
装机总功率 | Total power | Kw | 60 | 90 | 93 |
型号 | Model | Unit | BM30 | BM50 | BM100 | BM160 |
制品最大容积 | Max product volume | L | 30 | 50 | 100 | 160 |
机器空循环 | Dry cycle | Pc/h | 600 | 350 | 360 | 300 |
机头结构 | Die head structure | Accumulating type | ||||
主螺杆直径 | Main screw diameter | mm | 80 | 90 | 100 | 100 |
最大塑化能力 | Max capacity (PE) | kg/h | 120 | 180 | 190 | 240 |
绞撩电机功率 | Driving motor | Kw | 37 | 45 | 55 | 90 |
油泵电机功率（伺服） | Oil pump motor power(Servo) | Kw | 5.2 | 6.2 | 12.8 | 18 |
锁模力 | Clamping force | KN | 22 | 30 | 22 | 22 |
模板开距 | Space between platen | mm | 280 | 400 | 600 | 800 |
模板尺寸 | Platen size W*H | mm | 400-900 | 450-1200 | 500-1300 | 500-1400 |
最大模具尺寸 | Max. mold size | mm | 740*740 | 880*880 | 1020*1000 | 1120*1200 |
移模行程 | Platen moving distance | mm | 550*650 | 700*850 | 800*1200 | 900*1450 |
机头加热功率 | Heating power of die head | Kw | 20 | 28 | 30 | 30 |
机器外形尺寸 | Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.2*3.8 | 5.5*2.5*4.0 | 7*3.5*4 |
机器总重量 | Machine weight | T | 12 | 13.5 | 16 | 20 |
装机总功率 | Total power | Kw | 95 | 110 | 135 | 172 |

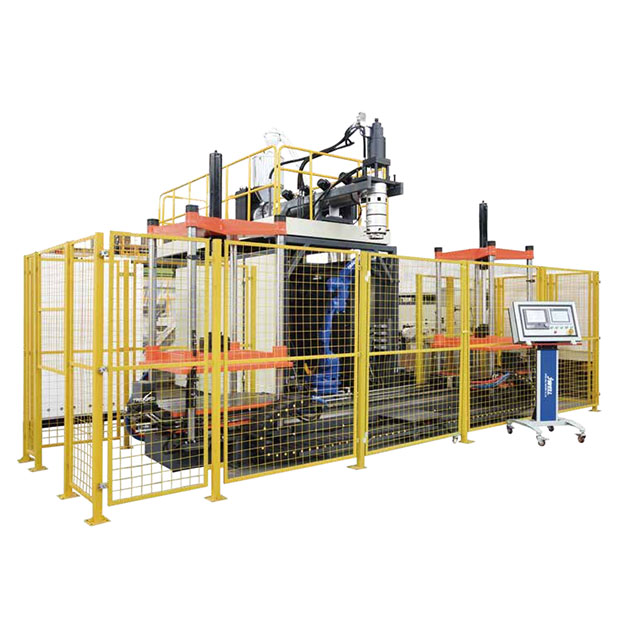

型号 | Model | Unit | 3D-1000(Robot type) | 100 3D(Vacuum type) |
主螺杆直径 | Main screw diameter | mm | 65 | 80 |
螺杆长径比 | Screw L/D | -- | 25:1 | 25:1 |
螺杆转速 | Screw rpm | r/min | 25-75 | 25-75 |
挤出量 | Max capacity(PE) | Kg/h | 65-75 | 100-120 |
模板尺寸 | Platen size W*H | mm | 800*1200 | 1020*1500 |
模具厚度 | Mould thickness | mm | 450 | 600 |
锁模力 | Clamping force | KN | 75 | 280 |
空循环 | Dry Cycle | Second | 20 | 10 |
移模行程 | Platen moving stroke | mm | 1800 | 360 |
Adopting a different screw and die core rod, and channel styles can be designed according to the characteristics of high-yield extrusions.
The U-shaped continuous die head is easy to change materials, colors, slag, dissassemble and clean.
Adopting a modulus uses a balanced lock frame structure, combined with linear guides from a well-known Taiwanese factory.
Computer imported intelligent control system, easy to operate, set up, and modify production programs.
Select imported famous brands.
A complete lubrication, less failure.
Automatic lubrican warning system.
Optional multi-layer co-extrusion.
Optional mold moving servo motor control.
Optional liquid level line extrusion.
Select a multi-row head extrusion system according to the product specifications and size.
According to the material situation, JWM-OB plate type single station hydraulic screen changing system can be optionally selected.
According to customer requirements, automatic trimming, online trimming conveyor, online leakage control, conveying, and packaging of products can be selected to reduce labor costs and improve production efficiency.
Adopting a high-yield extrusion system, different screw and die core rod, and channel styles can be designed according to the characteristics of different products.
Adopting a accumulating type mold head, the mold head is easy to change materials, colors, slag, dissassemble and clean.
Computer intelligent control system, easy to operate, set up, and modify production programs.
Optional internal partition device, product ejection, core pulling and other action components.
Optional double-layer co-extrusion system.
According to the raw material situation, JW-OB plate type single station hydraulic screen changing system can be optionally selected.
Template specifications and sizes can be customized according to the size of the product.

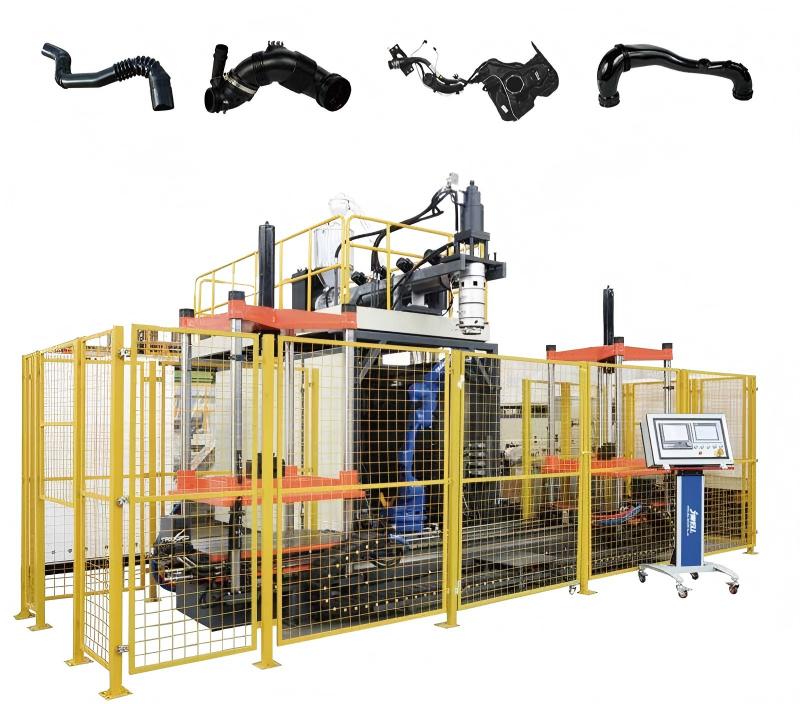

Suitable for producing different shaped pipe products like the automotive oil filling pipe, air ducts pipe and others.
Finished product length without scrap or stripping strengths.
Adopt high output extrusion system, accumulating die head.
Optional action elements such as upper parison close unit, product ejection, and core pulling.
Template size can be customized according to product size.
Hydraulic servo control system.
