Blow Molding Machine for Household Products - JWELL

Blow Molding Machine for Household Products

JWELL Household Series blow molding machine turn out the whole family's daily plastics—100 ml–2 L milk & juice bottles, 1–3 L soy / wine pitchers, 500 ml–3 L shampoo & conditioner bottles, 1–5 L dish-wash & laundry jugs, plus watering cans, toys, seats and play-sets—in one fast, label-ready, energy-saving line.

Place of Origin:
China
Payment Terms:
LC, T/T
Certification:
CE, ISO, UL, QS, GMP
Warranty:
1 Year
Delivery Time:
1-3 months


Availability:



Inquire

Product Description

JWELL Blow Molding Machine for Household Products Videos

JWELL household product series blow molding machines are mainly used for producing various milk and juice bottles, daily chemical products, toiletries, and children's toys:

1. 100ml-2000ml milk and juice bottles;

2. 1000ml-3000ml soy sauce and rice wine jugs;

3. 500ml-3000ml shampoo and conditioner bottles;

4. 1000ml-5000ml detergent and laundry liquid buckets;

5. Various watering cans, children's toys, chairs, and amusement facilities.

JWELL Blow Molding Machine for Household Products Specifications

型号	Model	Unit	BM02D	BM05D	BM12D	BM20D
制品最大容积	Max product volume	L	2	5	12	20
机器空循环	Dry cycle	Pc/h	900*2	700*2	600*2	600*2
机头结构	Die head structure	Continuous type
主螺杆直径	Main screw diameter	mm	65	75	90	90
最大塑化能力	Max capacity (PE)	kg/h	70	90	160	160
绞撩电机功率	Driving motor	Kw	22	30	45	45
油泵电机功率（伺服）	Oil pump motor power(Servo)	Kw	11	15	18.5	18.5
锁模力	Clamping force	KN	40	70	120	160
模板开距	Space between platen	mm	138-368	150-510	240-640	280-680
模板尺寸	Platen size W*H	mm	286*330	420*390	520*490	500*520
最大模具尺寸	Max. mold size	mm	300*350	420*400	520*490	560*520
移模行程	Platen moving distance	mm	420	450/520	600/650	650
机头加热功率	Heating power of die head	Kw	6	7.5	10	12.5
机器外形尺寸	Machine dimension LWH	m	3.01.92.4	3.73.12.7	4.23.23.0	4.33.23.1
机器总重量	Machine weight	T	5	8.5	12	14
装机总功率	Total power	Kw	45	60	90	93

型号	Model	Unit	BM30	BM50	BM100	BM160
制品最大容积	Max product volume	L	30	50	100	160
机器空循环	Dry cycle	Pc/h	600	350	360	300
机头结构	Die head structure	Accumulating type
主螺杆直径	Main screw diameter	mm	80	90	100	100
最大塑化能力	Max capacity (PE)	kg/h	120	180	190	240
绞撩电机功率	Driving motor	Kw	37	45	55	90
油泵电机功率（伺服）	Oil pump motor power(Servo)	Kw	5.2	6.2	12.8	18
锁模力	Clamping force	KN	22	30	22	22
模板开距	Space between platen	mm	280	400	600	800
模板尺寸	Platen size W*H	mm	400-900	450-1200	500-1300	500-1400
最大模具尺寸	Max. mold size	mm	740*740	880*880	1020*1000	1120*1200
移模行程	Platen moving distance	mm	550*650	700*850	800*1200	900*1450
机头加热功率	Heating power of die head	Kw	20	28	30	30
机器外形尺寸	Machine dimension LWH	m	4.32.23.5	5.62.23.8	5.52.54.0	73.54
机器总重量	Machine weight	T	12	13.5	16	20
装机总功率	Total power	Kw	95	110	135	172

JWELL Blow Molding Machine for Household Products Features

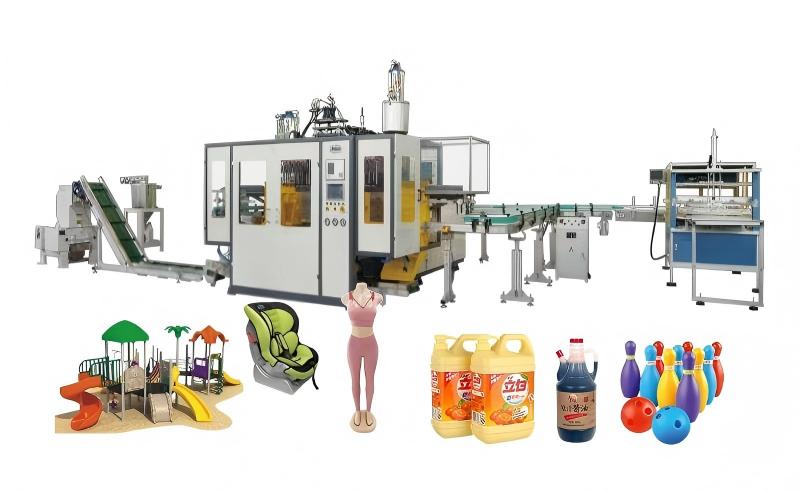

Blow Molding Machine for Household Products11

Performance and Advantages:

1. Suitable for producing milk bottles, soy sauce jugs, and rice wine jugs of various sizes from 100ml to 3000ml; various shampoos, shower gels, dishwashing liquids, and other personal care products from 200ml to 5000ml; and various small children's toys;

2. Optional multi-layer co-extrusion system;

3. Optional multi-die extrusion system according to product size;

4. Optional online deflashing, deflash conveying, and product collection systems;

Performance and Advantages:

1. Suitable for producing various child safety seats, tabletops, amusement facilities, etc.;

2. Employs a high-volume extrusion system with a storage die head;

3. Customizable die template dimensions to suit product size;

4. Optional hydraulic servo control system;

5. Optional bottom encapsulation, product ejection, core pulling, and other actuation components;

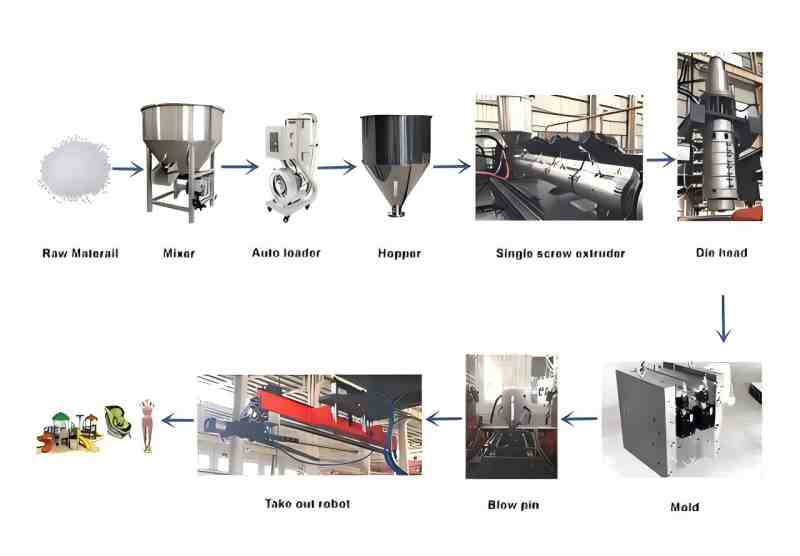

Full Production Processes of Blow Molding

Blow Molding Machine for Household Products10

PDF Catalogues

JWELL Blow Molding Machine.pdf

FAQ

Q1: What makes blow molding machines ideal for household cleaning products?

A1: 1.They offer chemical resistance and durable designs, ensuring bottles hold up to harsh substances without degrading, plus features like integrated handles for easy use.
Q2: How do different types of blow molding affect product clarity?

A2: 2.Stretch blow molding excels at creating clear, glossy containers like shampoo bottles, while extrusion might be better for opaque jugs where strength trumps transparency.
Q3: Can blow molding machines use recycled plastics for household items?

A3: Absolutely! Many modern machines incorporate post-consumer recycled materials in multi-layer setups, promoting sustainability without sacrificing quality.
